空調軟管CASE SHOW

DN40絲扣波紋軟管

服務內容:DN40絲扣波紋軟管

簡介:DN40絲扣波紋軟管 Corrugated hose thread 上海淞江減震器集團有限公司官方網站為您介紹:DN40絲扣波紋軟管信息,淞江集團生產各種管道軟連接產品,以下是絲扣波紋軟管介紹,該產品具有良好的減震效果,使用......

DN40絲扣波紋軟管
Corrugated hose thread

上海淞江減震器集團有限公司官方網站為您介紹:DN40絲扣波紋軟管信息,淞江集團生產各種管道軟連接產品,以下是絲扣波紋軟管介紹,該產品具有良好的減震效果,使用成本低,壽命長達10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 screw corrugated hose, soft connection products Songjiang group specializing in the production of various pipelines, the following is the thread of corrugated hose introduction, the product has a good damping effect, low cost, long of 10 years.

性能介紹:
公稱通徑:DN40mm
自然長度:250mm
軸向壓縮:10mm
軸向伸長:5mm
橫向位移:20mm
偏轉角度:45°
Performance introduction:

Nominal path: DN40mm
Natural length: 250mm
Axial compression: 10mm
Axial elongation: 5mm
Lateral displacement: 20mm

Deflection angle: 45 degrees

DN40絲扣波紋軟管
DN40絲扣波紋軟管
DN40絲扣波紋軟管
DN40絲扣波紋軟管
DN40絲扣波紋軟管

產品介紹:

1.產品名稱:DN40絲扣波紋軟管

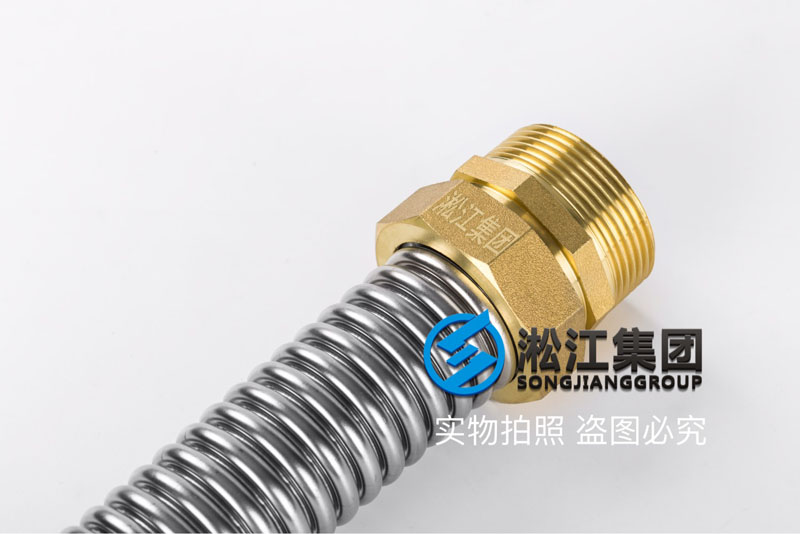

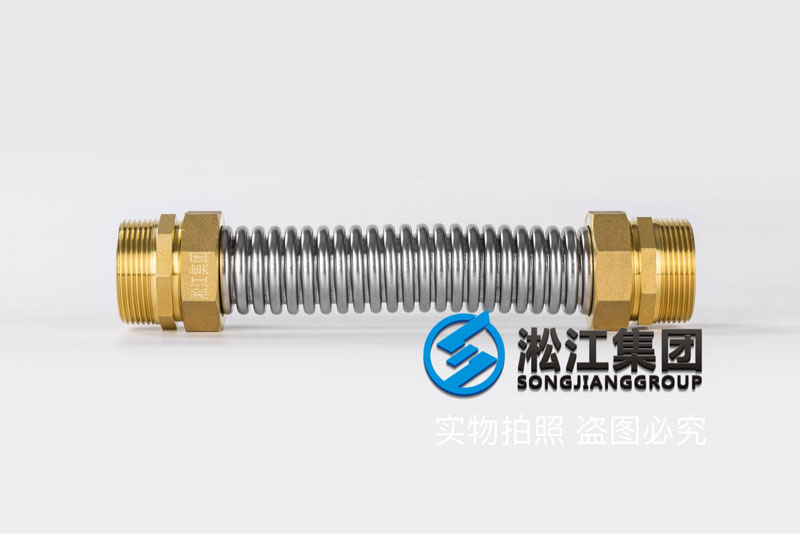

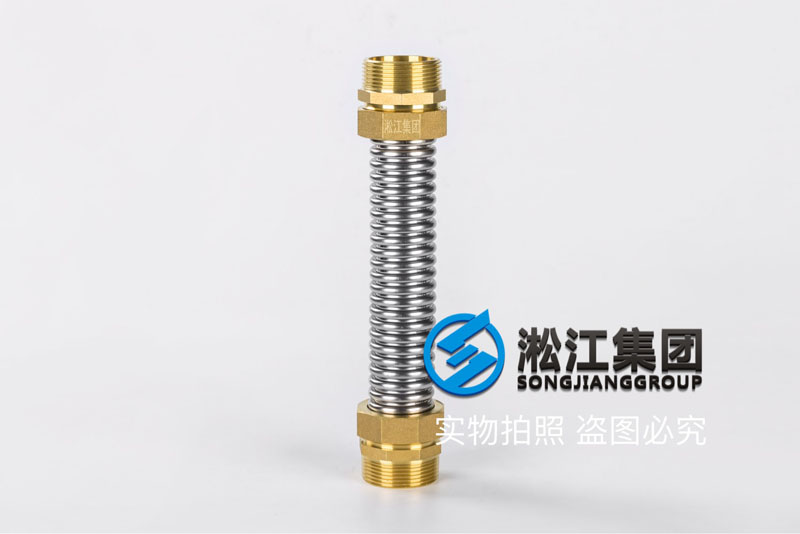

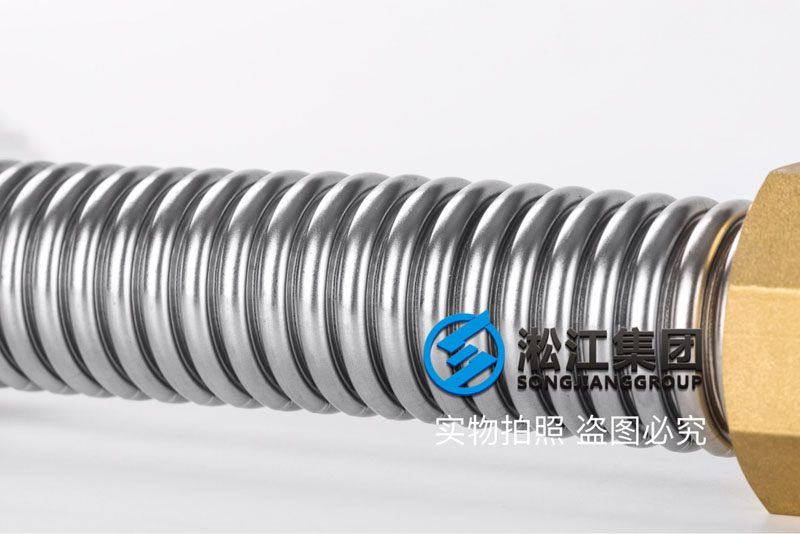

2.產品圖片:見上圖
3.產品結構:內螺紋接頭+外絲
4.產品.點:無需焊接,可按需要長度自行裝配
5.產品通徑:DN10~DN50
6.制作長度:100mm~1000mm
7.產品材料:
①六角接頭:銅
②六角螺母:銅
③密封墊圈:硅橡膠
④波紋管:SUS304
Product introduction:
1. Product Name: DN40?Corrugated hose thread
2. product picture: see the picture above
3. product structure: internal thread joint + outer wire
4. product features: without welding, it can be assembled according to the required length
5. product path: DN10~DN50
6. production length: 100mm~1000mm
7. product materials:
Six angle joint: Copper
Six angle nut: Copper
sealing washer: silicone rubber
Bellows: SUS304以上DN40絲扣波紋軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心,淞江集團生產各種金屬軟管產品,我廠經過德國萊茵TUV認證,歡迎的我廠實地參觀考察。
The above Dn40 thread corrugated hose information comes from the metal hose product center on the official website of Shanghai Songjiang shock absorber Group Co., Ltd. Songjiang group produces various metal hose products. Our factory has been certified by TUV in Rhine, Germany. You are welcome to visit our factory on site.
相關鏈接:【樣冊P96】各種類型不銹鋼金屬軟管
